Comparesion Dead Zone of Mixing

RESEARCH & DEVELOPMENT
MISCIBLE AGITATOR TESTING CENTER

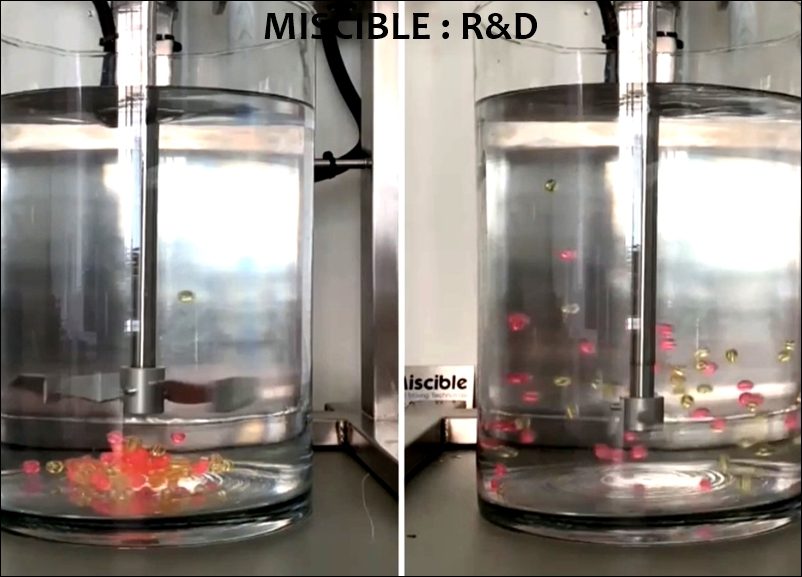

Comparesion Dead Zone of Mixing
[Mixbeam.2B] .......... [Viscrop.2B]

[Mixbeam.2B]
d/D = 0.8
No.of Blades : 2
Tip Speed Same Calculate
Flow Pattern : 30%-10%-60%

[Viscrop.2B]
d/D = 0.45
No.of Blades : 2
Tip Speed Same Calculate
Flow Pattern : 70%-20%-10%

Note: Axial flow-Radial flow-Tangential flow
