Slow Motion Radial and Axial flow Pattern

RESEARCH & DEVELOPMENT MISCIBLE AGITATOR TESTING CENTER

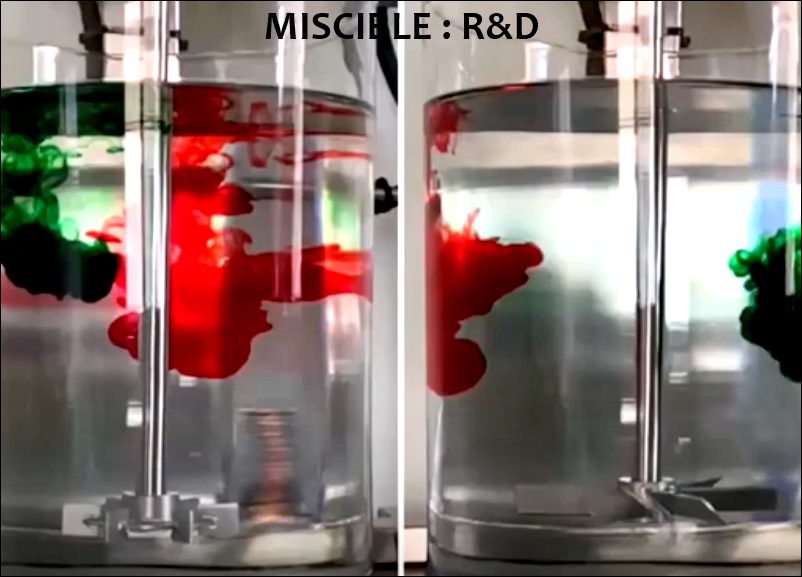

Slow Motion Radial and Axial flow Pattern Comparesion Flow Patterns [Radial Flow]——[Axial Flow] [Flatblades.T]

d/D = 0.33 No.of Blades : 6

Tip Speed Same Calculate Flow Pattern : 100%-00%-00%

Note: Axial flow-Radial flow-Tangential flow [TURBINE.6B] d/D = 0.4

No.of Blades : 6 Tip Speed Same Calculate Flow Pattern : 70%-30%-00%

Note: Axial flow-Radial flow-Tangential flow
