Effect of Number of Impeller Blades

RESEARCH & DEVELOPMENT
MISCIBLE AGITATOR TESTING CENTER
Effect of Number of Impeller Blades

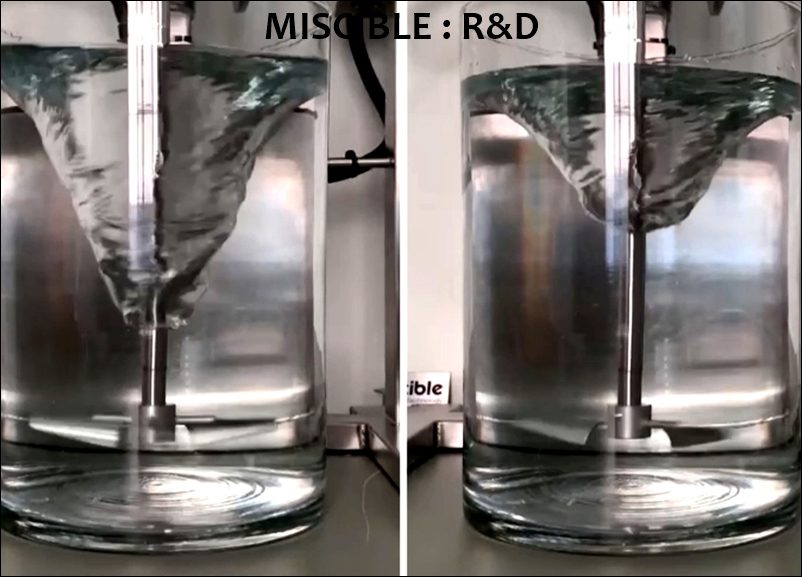

[Viscrop.4B] .......... [Viscrop.2B]

[Viscrop.4B]
d/D = 0.45
No.of Blades : 4
Tip Speed Same Calculate
Reynolds Same Calculate
Flow Pattern : 90%-10%-0%

[Viscrop.2B]
d/D = 0.45
No.of Blades : 2
Tip Speed Same Calculate
Reynolds Same Calculate
Flow Pattern : 70%-20%-10%

Note: Axial flow-Radial flow-Tangential flow
